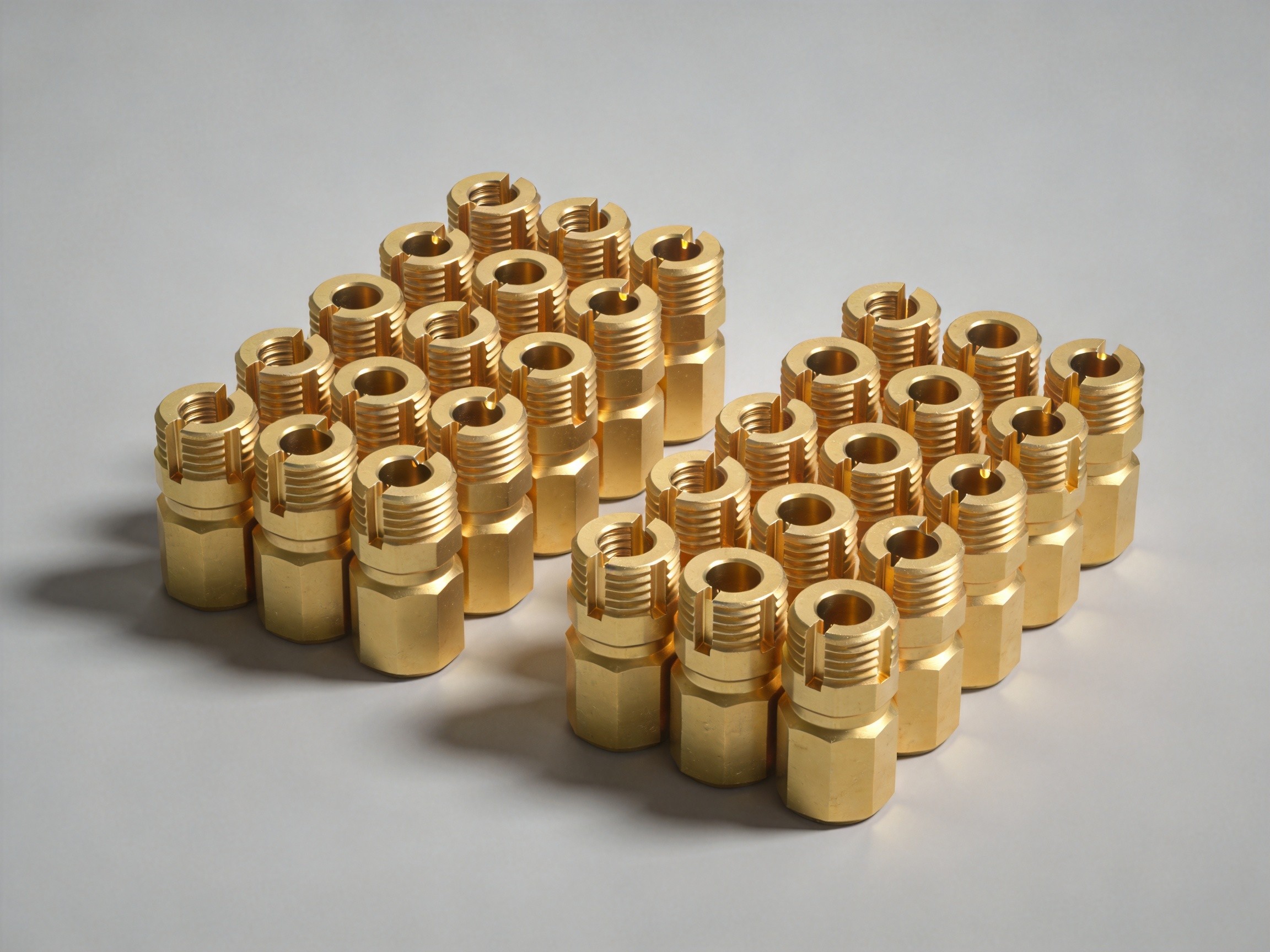

气动接头芯子 / Pneumatic Fitting Core Insert
气动接头芯子
气动接头芯子是工业气动系统与传感器件中的核心密封与导向部件。昆山图达讯电子科技有限公司采用优质H62黄铜为基材，依托高精度走心机纵切与车铣复合工艺，为各类快速气动接头、电磁阀及管接头提供微米级精密加工服务。H62黄铜优异的自润滑性能与切削加工性，使其在频繁插拔的气动配合中表现出卓越的耐磨性与气密稳定性。
针对气动芯子内锥面密封要求高、O型圈槽位置度严苛的加工难点，图达讯采用双主轴同步加工技术，在一次装夹中完成内锥车削、O型圈槽切割与外圆精车。这种“走心机一体成型”工艺不仅彻底消除了二次装夹带来的同轴度误差，更确保了芯子在高压气流环境下的零泄漏表现。
关键参数
表格
| 参数项目 | 规格详情 |
|---|---|
| 产品材质 | H62黄铜 (H62 Brass) |
| 加工工艺 | 走心机纵切、车铣复合、双主轴同步加工 |
| 加工直径 | Φ4mm – Φ10mm |
| 典型长度 | 8mm – 20mm |
| 尺寸公差 | ±0.005mm (IT6级) |
| 表面粗糙度 | Ra0.8 – Ra1.6 |
| 表面处理 | 镀镍 (Nickel Plating) |
| 应用领域 | 快速气动接头、PU/PA管接头、电磁阀进气嘴 |
| 最小起订量 | 2000件起，支持前期打样 |
产品特点与走心机工艺优势
- 双主轴一体成型，保障极致同轴度：采用进口走心机双主轴同步对向加工，内锥面、O型圈槽与外圆在一次装夹中连续完成，彻底避免二次装夹误差，确保芯子各台阶与密封面的极高同轴度。
- 微米级公差控制，实现卓越气密性：内锥面精密车削达到±0.005mm（IT6）公差等级，配合Ra0.8-Ra1.6的低粗糙度表面，确保与密封圈或阀体完美贴合，满足高压气动系统的严苛防漏要求。
- O型圈槽精度优化，延长密封寿命：针对O型圈槽的宽度、深度及底面粗糙度进行专项工艺优化，避免密封圈在装配与高压工作中发生挤压变形或异常磨损，大幅提升接头整体使用寿命。
- H62黄铜基材与镀镍工艺结合：H62黄铜自带优良自润滑性，适合气动部件的频繁摩擦配合；表面辅以均匀镀镍处理，进一步提升抗氧化与耐腐蚀能力，适应复杂工业环境。
典型应用
- 快速气动接头内置芯子：作为快速接头的核心锁紧与密封部件，保障气管在高压下的快速插拔与稳定气密。
- PU/PA管接头导向芯：在塑料气管接头中提供精准的导向与支撑，防止软管在插入时发生折叠或密封失效。
- 电磁阀进气嘴：用于气动电磁阀的进气控制端，确保阀芯动作时的气流导向精准与动态密封可靠。
- 工业自动化气动控制元件：广泛应用于各类气缸、气动夹具及自动化生产线的气路分配模块中。
关于昆山图达讯
昆山图达讯电子科技有限公司始创于1998年，深耕精密走心机加工近三十年。公司配备60余台西铁城（Citizen）、津上（Tsugami）、斯大（Star）等进口高端走心机设备，日产能高达50万件。我们严格执行IATF16949与ISO9001双体系质量管理标准，致力于为汽车、医疗器械、航空航天、5G通信及工业自动化等全球客户提供微米级精密零部件解决方案。
获取定制报价与技术支持
- 官网：www.tudasyn.com
- 邮箱：yty@tudasyn.com
- 电话：18913105795
Pneumatic Fitting Core Insert
The pneumatic fitting core insert is a critical sealing and guiding component in industrial pneumatic systems and sensor devices. Kunshan Tudasyn Electronic Technology Co., Ltd. utilizes premium H62 brass as the base material, relying on high-precision Swiss-type CNC sliding headstock turning and mill-turn combined processes to provide micron-level precision machining for various quick pneumatic fittings, solenoid valves, and tube fittings. The excellent self-lubricating properties and machinability of H62 brass ensure outstanding wear resistance and airtight stability in frequent plug-and-pull pneumatic mating.
Addressing the machining challenges of strict inner cone sealing requirements and tight O-ring groove positional tolerances, Tudasyn employs dual-spindle synchronous machining technology. The inner cone turning, O-ring groove cutting, and outer diameter precision turning are completed in a single clamping setup. This "one-stop Swiss-type CNC forming" process completely eliminates coaxiality errors caused by secondary clamping, ensuring zero-leakage performance of the core insert in high-pressure airflow environments.
Key Specifications
表格
| Parameter | Specification Details |
|---|---|
| Material | H62 Brass |
| Machining Process | Swiss-type CNC sliding, mill-turn combined, dual-spindle synchronous |
| Machining Diameter | Φ4mm – Φ10mm |
| Typical Length | 8mm – 20mm |
| Tolerance | ±0.005mm (IT6 Grade) |
| Surface Roughness | Ra0.8 – Ra1.6 |
| Surface Treatment | Nickel Plating |
| Applications | Quick pneumatic fittings, PU/PA tube fittings, solenoid valve air inlets |
| Minimum Order Qty | MOQ 2000 pcs, sampling supported |
Features & Swiss-Type CNC Advantages
- Dual-Spindle One-Stop Machining for Ultimate Coaxiality: Utilizing imported Swiss-type CNC dual-spindle synchronous opposite machining, the inner cone, O-ring groove, and OD are completed continuously in one clamping. This completely avoids secondary clamping errors, ensuring extremely high coaxiality between all steps and sealing surfaces.
- Micron-Level Tolerance Control for Superior Airtightness: Precision turning of the inner cone achieves a ±0.005mm (IT6) tolerance grade. Combined with a low surface roughness of Ra0.8-Ra1.6, it ensures a perfect fit with O-rings or valve bodies, meeting the strict leak-proof requirements of high-pressure pneumatic systems.
- O-Ring Groove Precision Optimization for Extended Seal Life: Specialized process optimization for the width, depth, and bottom surface roughness of the O-ring groove prevents the seal from extrusion deformation or abnormal wear during assembly and high-pressure operation, significantly improving the overall service life of the fitting.
- H62 Brass Base Material Combined with Nickel Plating: H62 brass features inherent excellent self-lubrication, ideal for frequent friction mating of pneumatic components. The uniform nickel plating on the surface further enhances oxidation resistance and corrosion protection, adapting to complex industrial environments.
Typical Applications
- Quick Pneumatic Fitting Core Inserts: Serving as the core locking and sealing component of quick fittings, ensuring rapid plug-and-pull and stable airtightness of air tubes under high pressure.
- PU/PA Tube Fitting Guide Cores: Providing precise guidance and support in plastic air tube fittings, preventing the hose from folding or failing to seal during insertion.
- Solenoid Valve Air Inlets: Used at the air intake control end of pneumatic solenoid valves, ensuring precise airflow guidance and reliable dynamic sealing during spool actuation.
- Industrial Automation Pneumatic Control Components: Widely applied in various pneumatic cylinders, pneumatic fixtures, and air circuit distribution modules of automated production lines.
About Kunshan Tudasyn
Founded in 1998, Kunshan Tudasyn Electronic Technology Co., Ltd. has been deeply engaged in precision Swiss-type CNC machining for nearly thirty years. The company is equipped with over 60 imported high-end Swiss-type CNC machines from Citizen, Tsugami, and Star, with a daily production capacity of up to 500,000 pieces. We strictly implement the IATF16949 and ISO9001 dual-system quality management standards, committed to providing micron-level precision component solutions for global customers in automotive, medical devices, aerospace, 5G communications, and industrial automation.
